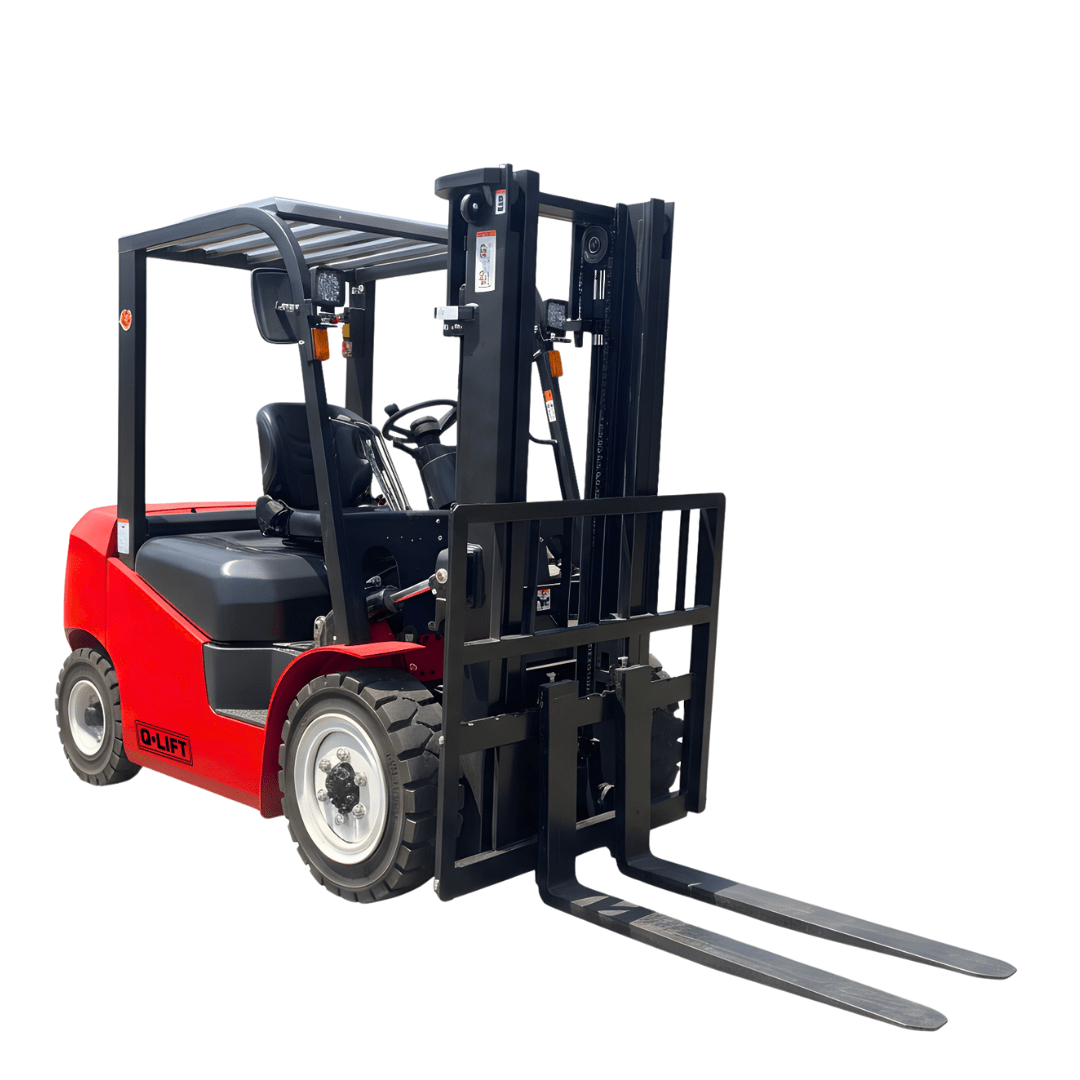

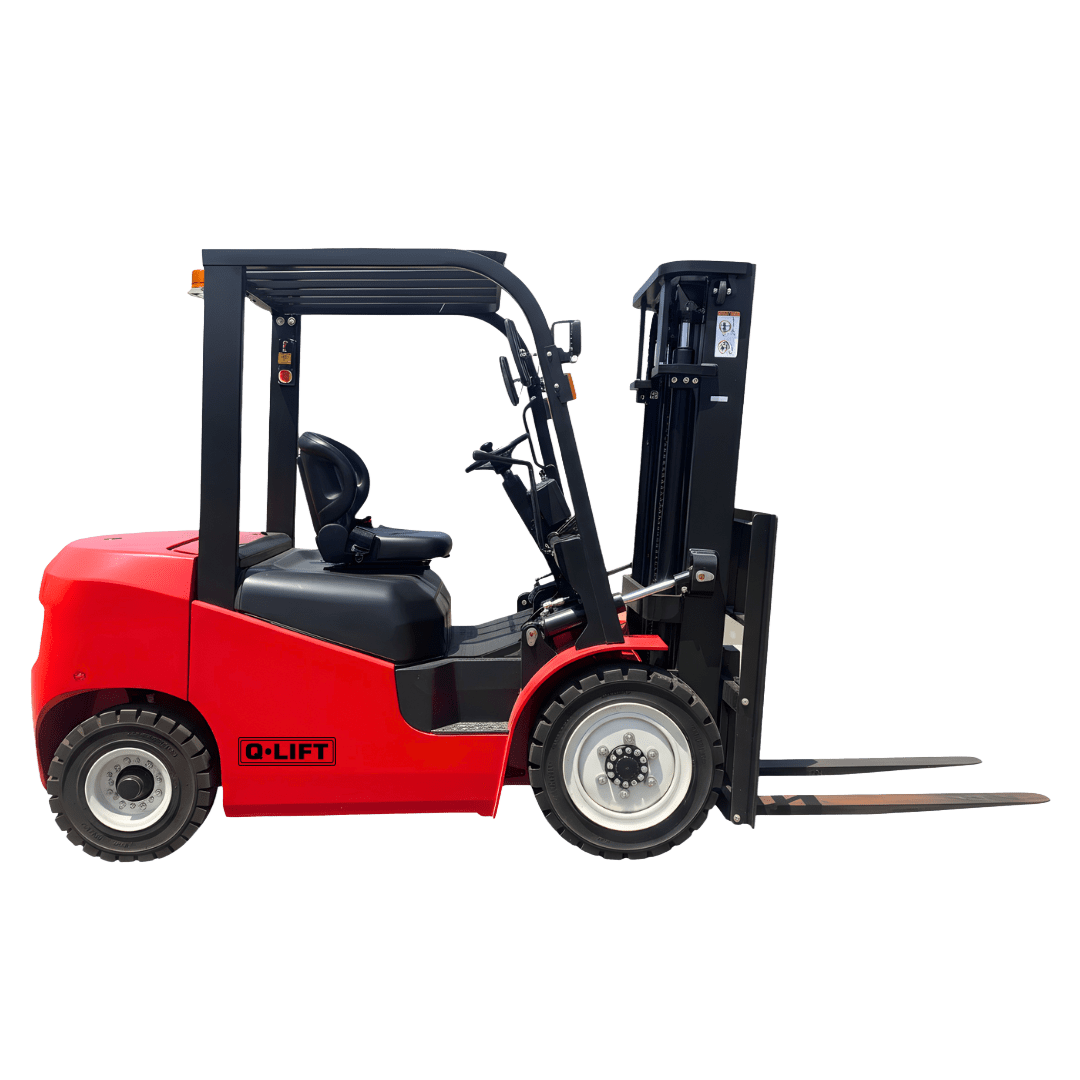

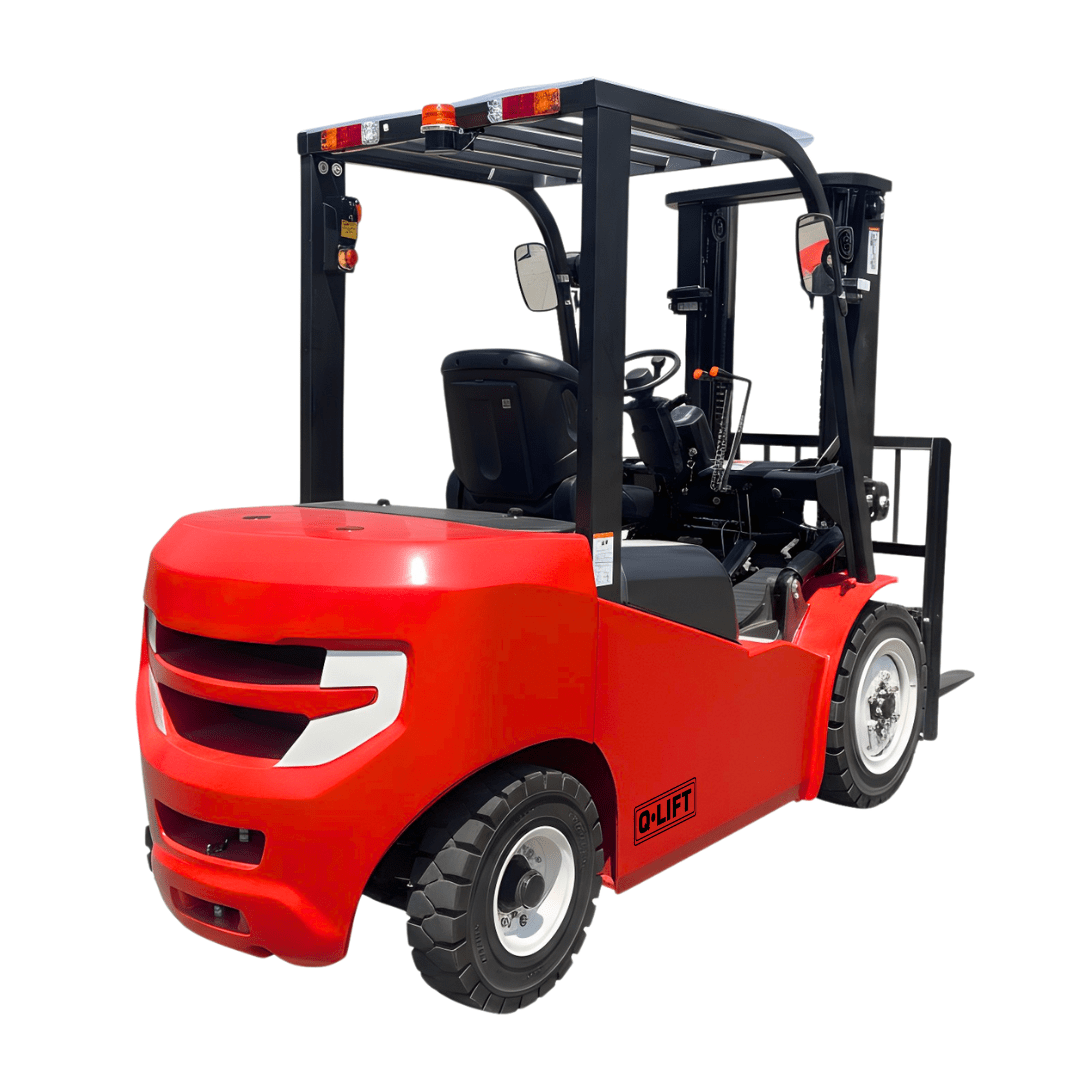

QFLE3.0 | 3.0 TON | 4 – WHEEL | ELECTRICAL FORKLIFT

QFLE3.0 | 3.0 TON | 4 - WHEEL | ELECTRICAL FORKLIFT
QFLE3.0 | 3.0 TON | 4 - WHEEL | ELECTRICAL FORKLIFT - Image 2
QFLE3.0 | 3.0 TON | 4 - WHEEL | ELECTRICAL FORKLIFT - Image 3

QFLE3.0 | 3.0 TON | 4 – WHEEL | ELECTRICAL FORKLIFT

POWERFUL. EFFICIENT. ECO-FRIENDLY.

Experience unmatched efficiency and performance with the QFLE3.0 Electric Forklift, designed for modern warehouses, factories, and logistics centers. Combining precision, strength, and sustainability, this forklift is engineered to handle heavy loads while reducing your carbon footprint.

KEY FEATURES:

High-Capacity Lithium-Ion Battery:
Equipped with an 80V / 500Ah battery and advanced AC controller, providing long-lasting performance, fast charging, and minimal maintenance compared to traditional lead-acid systems.

Robust Electric Motors:
Powered by a 15 kW drive motor and 12 kW lift motor, offering smooth, quiet operation with a lifting speed of 300 mm/s and travel speed up to 14 km/h, even under full load.

3-Stage Full Free Lift Mast:
The forklift features a full free lift mast with a lift height range of 3,000–4,500 mm, capable of handling loads up to 3,000 kg at a 500 mm load center. Precise tilt angles (6° forward / 12° backward) ensure secure handling of materials.

Compact and Maneuverable:
With an overall width of 1,230 mm and a turning radius of 1,700 mm, the QFLE3.0 navigates tight aisles with ease, making it perfect for busy indoor environments.

Durable Design:
Heavy-duty tyres (28×9-15 front, 18×7-8 rear) and a service weight of 5,100 kg provide stability, traction, and reliability for demanding operations.

Operator Comfort & Safety:
Ergonomically designed controls, adjustable seating, and integrated safety systems—including overload protection, anti-rollback, and LED work lights—ensure both efficiency and peace of mind.

Eco-Friendly Operation:
Zero emissions, energy-efficient performance, and quiet operation make the QFLE3.0 ideal for sustainable workplaces.



Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLE3.0 | 3.0 TON – Spec Sheet

Experience unmatched efficiency and performance with our state-of-the-art Electric Forklift, equipped with cutting-edge lithium-ion battery technology. Designed for seamless operation in warehouses, factories, and logistics centers, this forklift combines power, precision, and sustainability to meet all your material-handling needs.

Available on back-order

Request a quote
SKU QFLE3.0 Category Tag
Share this
📦 Model Details
Model QFLE3.0 Power Type Electric

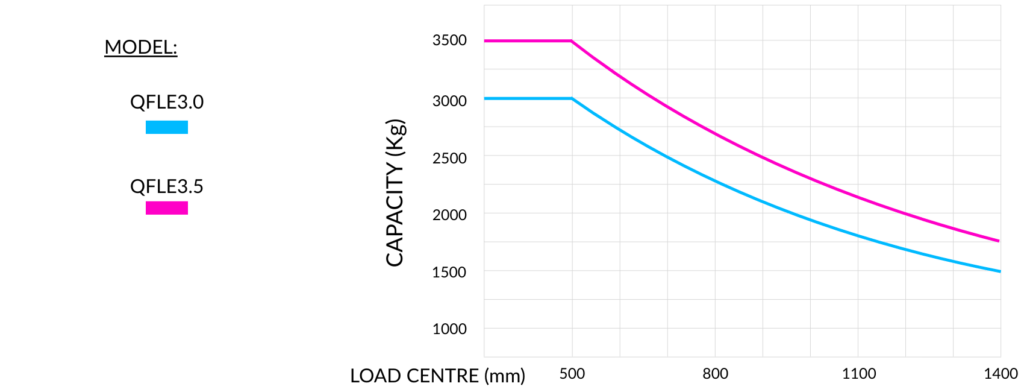

Rated Capacity 3000 kg Load Centre 500 mm
Lift Height 3000 – 4500 mm Fork Size (L×W×T) 1070 × 125 × 45 mm
Tilt Angle (F/R) 6° / 12°

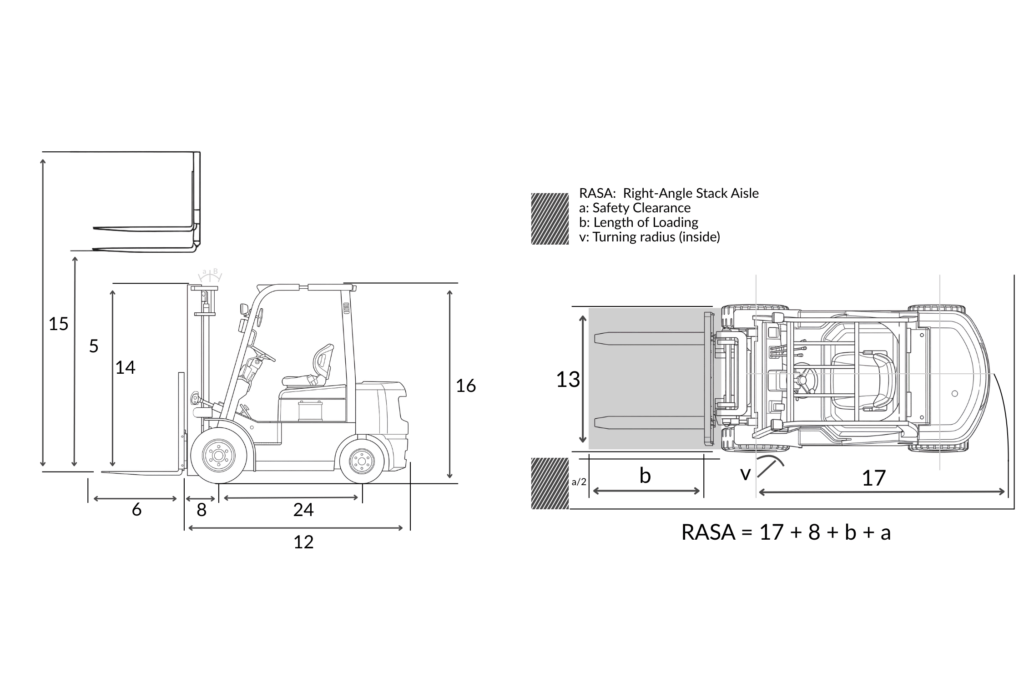

📐 Dimensions & Characteristics
Front Overhang 480 mm Tread (F/R) 1000 / 980 mm
Ground Clearance 140 mm Fork Spread (Min/Max) 250 / 1100 mm
Length (No Fork) 2610 mm Overall Width 1230 mm
Mast Lowered Height 2115 mm Mast Extended Height (With Backrest) 4180 mm
Overhead Guard Height 2250 mm Turning Radius (Outside) 2350 mm
Minimum Intersecting Aisle Width 2425 mm



⚡ Performance
Travel Speed (Empty) 14 km/h Lifting Speed (Load) 300 mm/s
Max Gradeability 15%



🛞 Tyres & ⚙️ Weight/Power
Front Tyres 28×9-15 (12 PR) Rear Tyres 18×7-8 (14 PR)
Wheelbase 1700 mm Service Weight 5100 kg
Drive Motor 15 kW Lift Motor 12 kW



🔋 Battery & Hydraulics
Battery 80V / 500Ah Controller AC
Hydraulic Pressure 18 Mpa



🏗️ 3-Stage Full Free Lift
Model QFLE3.0 Lift Height 4500 mm
Load Capacity 2700 / 2800 kg



📏 Mast Heights (2.5T)
Mast Lowered 2135 mm Extended (With Backrest) 5675 mm
Extended (No Backrest) 5275 mm Free Lift (With BR) 990 mm
Free Lift (No BR) 1390 mm Tilt Angle (F/R) 6° / 6°

Description

POWERFUL. EFFICIENT. ECO-FRIENDLY.

Experience unmatched efficiency and performance with the QFLE3.0 Electric Forklift, designed for modern warehouses, factories, and logistics centers. Combining precision, strength, and sustainability, this forklift is engineered to handle heavy loads while reducing your carbon footprint.

KEY FEATURES:

High-Capacity Lithium-Ion Battery:
Equipped with an 80V / 500Ah battery and advanced AC controller, providing long-lasting performance, fast charging, and minimal maintenance compared to traditional lead-acid systems.

Robust Electric Motors:
Powered by a 15 kW drive motor and 12 kW lift motor, offering smooth, quiet operation with a lifting speed of 300 mm/s and travel speed up to 14 km/h, even under full load.

3-Stage Full Free Lift Mast:
The forklift features a full free lift mast with a lift height range of 3,000–4,500 mm, capable of handling loads up to 3,000 kg at a 500 mm load center. Precise tilt angles (6° forward / 12° backward) ensure secure handling of materials.

Compact and Maneuverable:
With an overall width of 1,230 mm and a turning radius of 1,700 mm, the QFLE3.0 navigates tight aisles with ease, making it perfect for busy indoor environments.

Durable Design:
Heavy-duty tyres (28×9-15 front, 18×7-8 rear) and a service weight of 5,100 kg provide stability, traction, and reliability for demanding operations.

Operator Comfort & Safety:
Ergonomically designed controls, adjustable seating, and integrated safety systems—including overload protection, anti-rollback, and LED work lights—ensure both efficiency and peace of mind.

Eco-Friendly Operation:
Zero emissions, energy-efficient performance, and quiet operation make the QFLE3.0 ideal for sustainable workplaces.



Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLE3.0 | 3.0 TON – Spec Sheet
