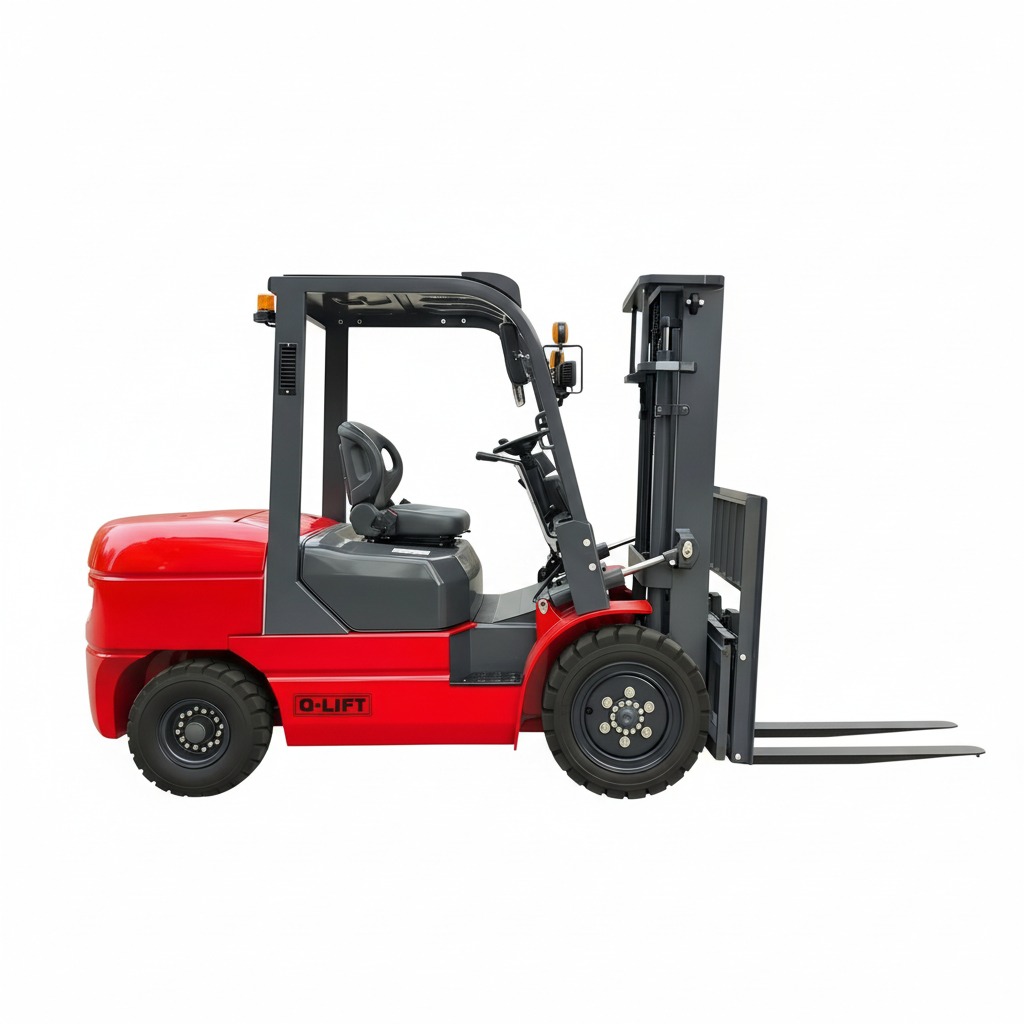

QFLD4.5 | 4.5 TON | 4 – WHEEL | DIESEL FORKLIFT

QFLD4.5 | 4.5 TON | 4 - WHEEL | DIESEL FORKLIFT
QFLD4.5 | 4.5 TON | 4 - WHEEL | DIESEL FORKLIFT - Image 2

QFLD4.5 | 4.5 TON | 4 – WHEEL | DIESEL FORKLIFT

The Q-LIFT QFLD4.5 diesel forklift is a heavy-duty material handling solution engineered for demanding industrial environments. With a rated capacity of 4,500 kg at a 500 mm load centre, this forklift is built to handle large and heavy loads with confidence, making it ideal for warehouses, container yards, manufacturing plants, construction sites, and logistics operations.

Powered by a reliable 6-cylinder diesel engine, delivering 82.4 kW at 2,000 RPM and 416.8 N·m of torque, the QFLD4.5 offers strong, consistent performance even under full load. The hydraulic transmission ensures smooth power delivery, precise control, and efficient operation across varied working conditions.

Equipped with a Full Free 3-Stage Mast offering lift heights from 3,000 mm up to 4,500 mm, the QFLD4.5 allows for efficient stacking in confined spaces while maintaining excellent visibility. The robust mast design, combined with a 6° forward and 12° rear tilt, ensures stable and secure load handling.

The forklift features a durable chassis, wide stance, and heavy-duty pneumatic tyres, providing excellent stability and traction on uneven or outdoor surfaces. A 25 km/h travel speed (unladen) and strong lifting performance of 400 mm/s at full load enhance productivity during intensive operations.

Designed with operator comfort and safety in mind, the QFLD4.5 includes an overhead guard, ergonomic controls, and a well-balanced layout to reduce operator fatigue during extended shifts.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD4.5 | 4.5 TON – Spec Sheet

Q-LIFT Diesel forklifts are robust and versatile industrial vehicles designed for heavy-duty material handling tasks. Powered by efficient diesel engines, these forklifts are ideal for outdoor operations and environments where durability and strength are paramount. Their superior lifting capacity and ability to operate in rugged conditions make them the preferred choice for industries such as construction, logistics, and manufacturing.

Available on back-order

Request a quote
SKU QFLD4.5 Category Tag
Share this
📦 Model Details
Model QFLD4.5 Power Type Diesel

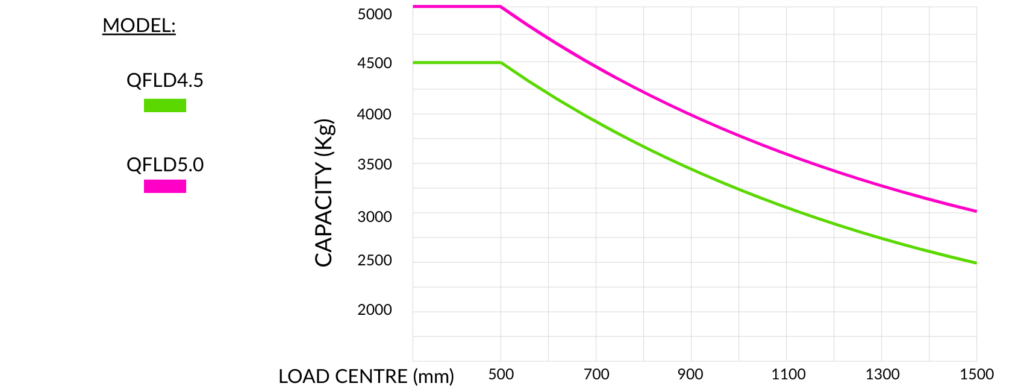

Rated Capacity 4500 kg Load Centre 500 mm
Lift Height 3000 – 4500 mm Fork Size (L×W×T) 1070 x 150 x 50 mm
Mast Tilt Angle (F/R) 6° / 12°



📐 Dimensions
Front Overhang 579 mm Ground Clearance 150 mm
Length (No Fork) 3260 mm Overall Width 1460 mm
Mast Lowered Height 2270 mm Mast Extended Height (With Backrest) 4165 mm
Overhead Guard Height 2340 mm Turning Radius (Outside) 2910 mm
Intersecting Aisle Width 2920 mm



⚡ Performance
Travel Speed (Empty) 25 km/h Lifting Speed (Full Load) 400 mm/s
Max Gradeability 20%



🛞 Tyres & ⚙️ Weight/Power
Front Tyres  300 – 15 (18 PR) Rear Tyres 7.00 – 12 (12PR)
Wheelbase 2100 mm Service Weight 6400 kg



🔋 Battery & Engine
Battery 12 V / 80 Ah x 2 Engine Model QFLD4.5
Manufacturer XINCHAI Rated Output / RPM 82.4 kW / 2000
Rated Torque / RPM 416.8 N·m / 1500 No. of Cylinders 6
Bore x Stroke 105 × 125 mm Displacement 6494 cc
Fuel Tank Capacity 130 L Transmission Type Hydraulic
Stage I FWD/RVS 2 / 1 Operating Pressure 18 Mpa



🏗️ Full Free 3 Stage Lift Mast
Lift Height 4500 mm Load Capacity 3900 / 4500 kg



📏 Mast Heights (3.0T)
Mast Lowered 2270 mm Extended (With Backrest) 5680 mm
Extended (No Backrest) 5350 mm Free Lift (With BR) 1145 mm
Free Lift (No BR) 1460 mm Tilt Angle (F/R) 6° / 6°

Description

The Q-LIFT QFLD4.5 diesel forklift is a heavy-duty material handling solution engineered for demanding industrial environments. With a rated capacity of 4,500 kg at a 500 mm load centre, this forklift is built to handle large and heavy loads with confidence, making it ideal for warehouses, container yards, manufacturing plants, construction sites, and logistics operations.

Powered by a reliable 6-cylinder diesel engine, delivering 82.4 kW at 2,000 RPM and 416.8 N·m of torque, the QFLD4.5 offers strong, consistent performance even under full load. The hydraulic transmission ensures smooth power delivery, precise control, and efficient operation across varied working conditions.

Equipped with a Full Free 3-Stage Mast offering lift heights from 3,000 mm up to 4,500 mm, the QFLD4.5 allows for efficient stacking in confined spaces while maintaining excellent visibility. The robust mast design, combined with a 6° forward and 12° rear tilt, ensures stable and secure load handling.

The forklift features a durable chassis, wide stance, and heavy-duty pneumatic tyres, providing excellent stability and traction on uneven or outdoor surfaces. A 25 km/h travel speed (unladen) and strong lifting performance of 400 mm/s at full load enhance productivity during intensive operations.

Designed with operator comfort and safety in mind, the QFLD4.5 includes an overhead guard, ergonomic controls, and a well-balanced layout to reduce operator fatigue during extended shifts.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD4.5 | 4.5 TON – Spec Sheet
