QFLE5.0 | 5.0 TON | 4 – WHEEL | ELECTRICAL FORKLIFT

QFLE5.0 | 5.0 TON | 4 - WHEEL | ELECTRICAL FORKLIFT
QFLE5.0 | 5.0 TON | 4 - WHEEL | ELECTRICAL FORKLIFT - Image 2

QFLE5.0 | 5.0 TON | 4 – WHEEL | ELECTRICAL FORKLIFT

POWERFUL. EFFICIENT. ECO-FRIENDLY.
Experience unmatched performance with the QFLE5.0 Electric Forklift, engineered for demanding warehouse, factory, and logistics operations. Combining advanced electric power, precision handling, and sustainable technology, this forklift delivers reliability and efficiency for all your material-handling needs.

KEY FEATURES:

High-Capacity Lithium-Ion Battery:
Equipped with an 80V / 700Ah battery, offering fast charging, long service life, and virtually maintenance-free operation compared to traditional lead-acid alternatives.

High-Performance Dual Motors:
11 kW drive motors and 12 kW lift motors ensure smooth, quiet operation with impressive travel speeds of 14 km/h and lifting speeds of 280 mm/s.

Ergonomic Operator Design:
Comfortable, intuitive controls with an operator-friendly cabin and adjustable seating for reduced fatigue during long shifts.

Compact and Agile:
With a wheelbase of 2000 mm and precise steering, this forklift is ideal for tight spaces, featuring excellent manoeuvrability and a minimal turning radius.

Eco-Friendly and Energy Efficient:
Zero emissions make it a sustainable choice for indoor operations while maintaining powerful lifting and travel performance.

Advanced Safety Features:
Integrated safety systems include overload protection, anti-rollback, LED work lights, and a 3-stage full free lift mast, ensuring secure and efficient handling of loads up to 5,000 kg.

Versatile Performance:
With a lift height range of 3,000–4,500 mm, adjustable fork spread (300–1,380 mm), and a maximum gradeability of 15%, the QFLE5.0 adapts to a variety of material-handling tasks.

&bnsp;

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLE5.0 I 5.0 TON – Spec Sheet

Experience unmatched efficiency and performance with our state-of-the-art Electric Forklift, equipped with cutting-edge lithium-ion battery technology. Designed for seamless operation in warehouses, factories, and logistics centers, this forklift combines power, precision, and sustainability to meet all your material-handling needs.

Available on back-order

Request a quote
SKU QFLE5.0 Category Tag
Share this
📦 Model Details
Model QFLE5.0 Power Type Electric

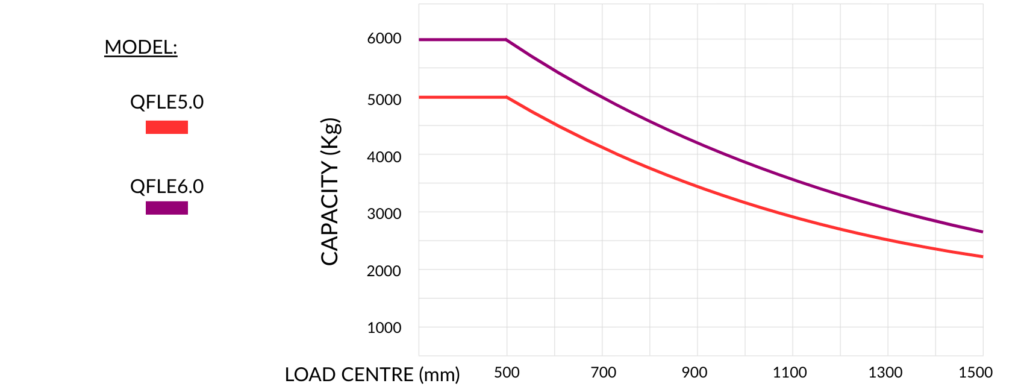

Rated Capacity 5000 kg Load Centre 500 mm
Lift Height 3000 – 4500 mm Fork Size (L×W×T) 1070 x 150 x 50 mm
Tilt Angle (F/R) 6° / 9°

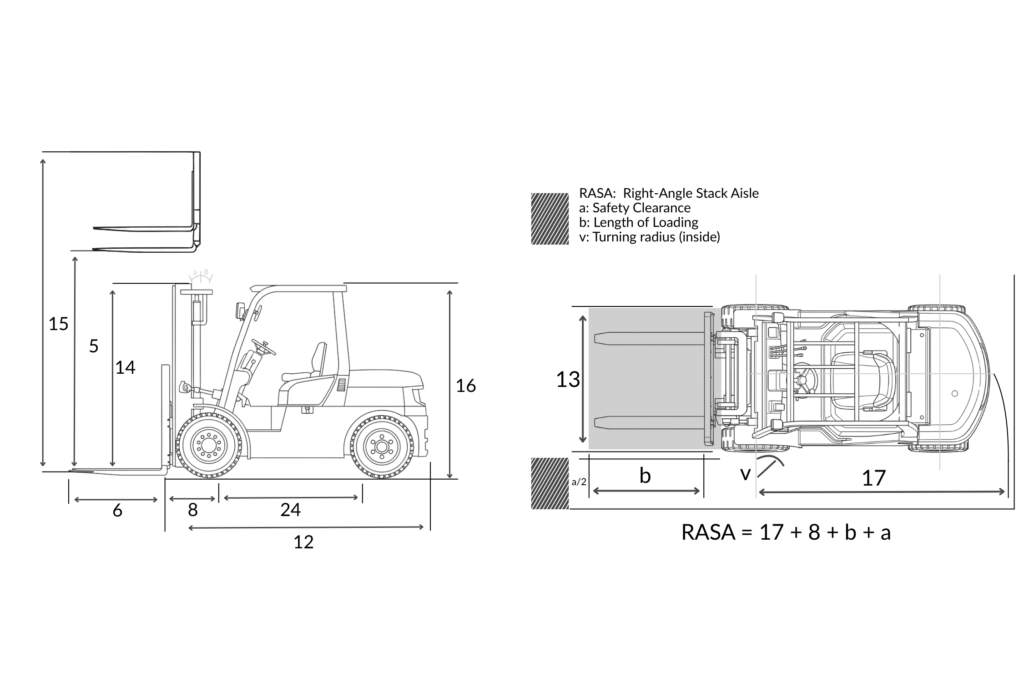

📐 Dimensions
Front Overhang 579 mm Tread (F/R) 1280 / 1190 mm
Ground Clearance 170 mm Fork Spread (Min/Max) 300 / 1380 mm
Length (No Fork) 3410 mm Overall Width 1600 mm
Mast Lowered Height 2270 mm Mast Extended Height (With Backrest) 4165 mm
Overhead Guard Height 2255 mm Turning Radius (Outside) 2817 mm
Minimum Intersecting Aisle Width 2955 mm



⚡ Performance
Travel Speed (Empty) 14 km/h Lifting Speed (Load) 280 mm/s
Max Gradeability 15%



🛞 Tyres & ⚙️ Weight/Power
Front Tyres 28 x 12.5  (15 PR) Rear Tyres 7.00 – 12 (12PR)
Wheelbase 2000 mm Service Weight 7970 kg
Drive Motor 11 kW x 2 Lift Motor 12 kW x 2



🔋 Battery & Hydraulics
Battery 80V / 700Ah Controller AC
Hydraulic Pressure 18 Mpa



🏗️ 3-Stage Full Free Lift
Model QFLE5.0 Lift Height 4500 mm
Load Capacity 4200 kg



📏 Mast Heights (2.5T)
Mast Lowered 2270 mm Extended (With Backrest) 5680 mm
Extended (No Backrest) 5350 mm Free Lift (With BR) 1145 mm
Free Lift (No BR) 1460 mm Tilt Angle (F/R) 6° / 6°

Description

POWERFUL. EFFICIENT. ECO-FRIENDLY.
Experience unmatched performance with the QFLE5.0 Electric Forklift, engineered for demanding warehouse, factory, and logistics operations. Combining advanced electric power, precision handling, and sustainable technology, this forklift delivers reliability and efficiency for all your material-handling needs.

KEY FEATURES:

High-Capacity Lithium-Ion Battery:
Equipped with an 80V / 700Ah battery, offering fast charging, long service life, and virtually maintenance-free operation compared to traditional lead-acid alternatives.

High-Performance Dual Motors:
11 kW drive motors and 12 kW lift motors ensure smooth, quiet operation with impressive travel speeds of 14 km/h and lifting speeds of 280 mm/s.

Ergonomic Operator Design:
Comfortable, intuitive controls with an operator-friendly cabin and adjustable seating for reduced fatigue during long shifts.

Compact and Agile:
With a wheelbase of 2000 mm and precise steering, this forklift is ideal for tight spaces, featuring excellent manoeuvrability and a minimal turning radius.

Eco-Friendly and Energy Efficient:
Zero emissions make it a sustainable choice for indoor operations while maintaining powerful lifting and travel performance.

Advanced Safety Features:
Integrated safety systems include overload protection, anti-rollback, LED work lights, and a 3-stage full free lift mast, ensuring secure and efficient handling of loads up to 5,000 kg.

Versatile Performance:
With a lift height range of 3,000–4,500 mm, adjustable fork spread (300–1,380 mm), and a maximum gradeability of 15%, the QFLE5.0 adapts to a variety of material-handling tasks.

&bnsp;

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLE5.0 I 5.0 TON – Spec Sheet
