QFLD2.0 | 2.0 TON | 4 – WHEEL | DIESEL FORKLIFT

QFLD2.0 | 2.0 TON | 4 - WHEEL | DIESEL FORKLIFT

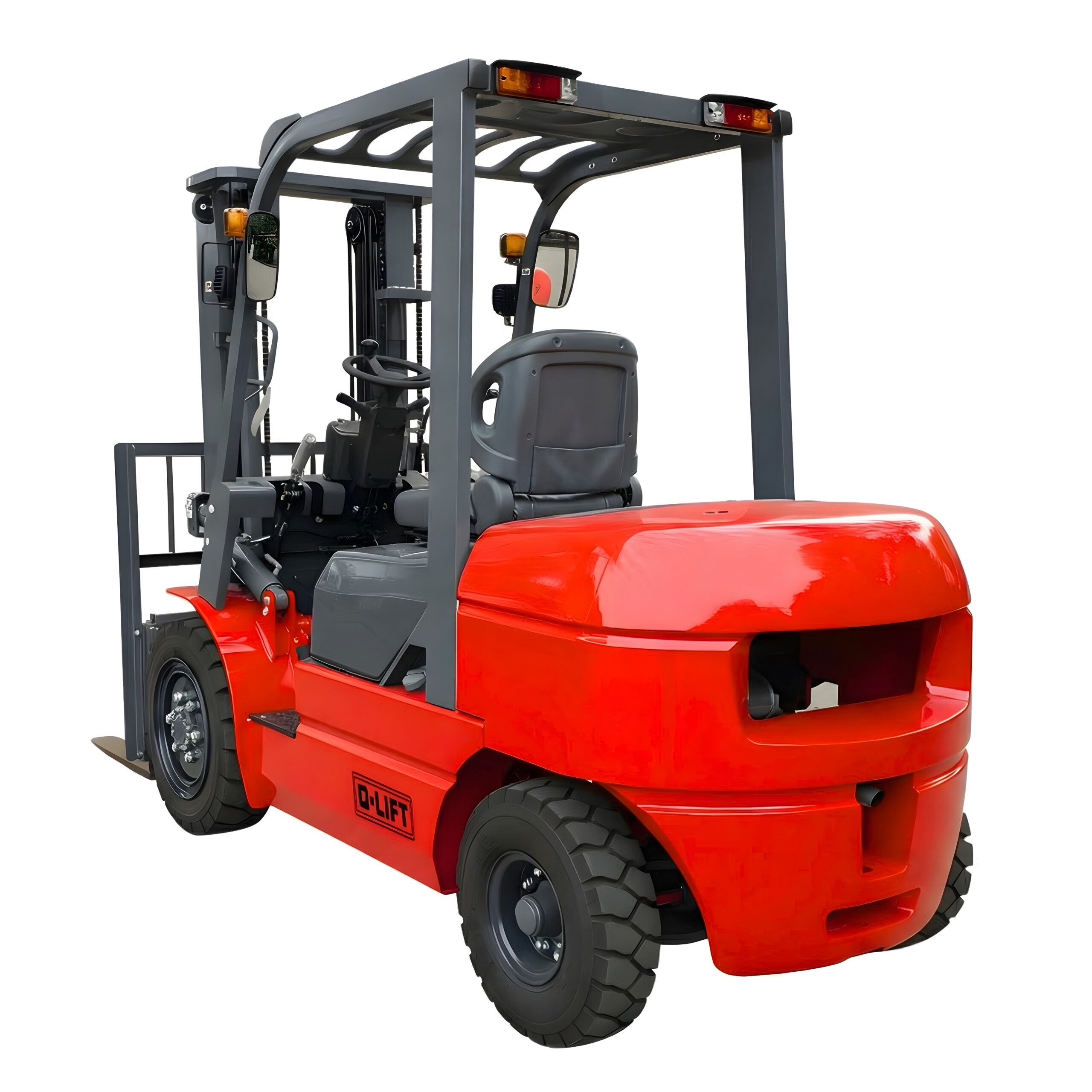

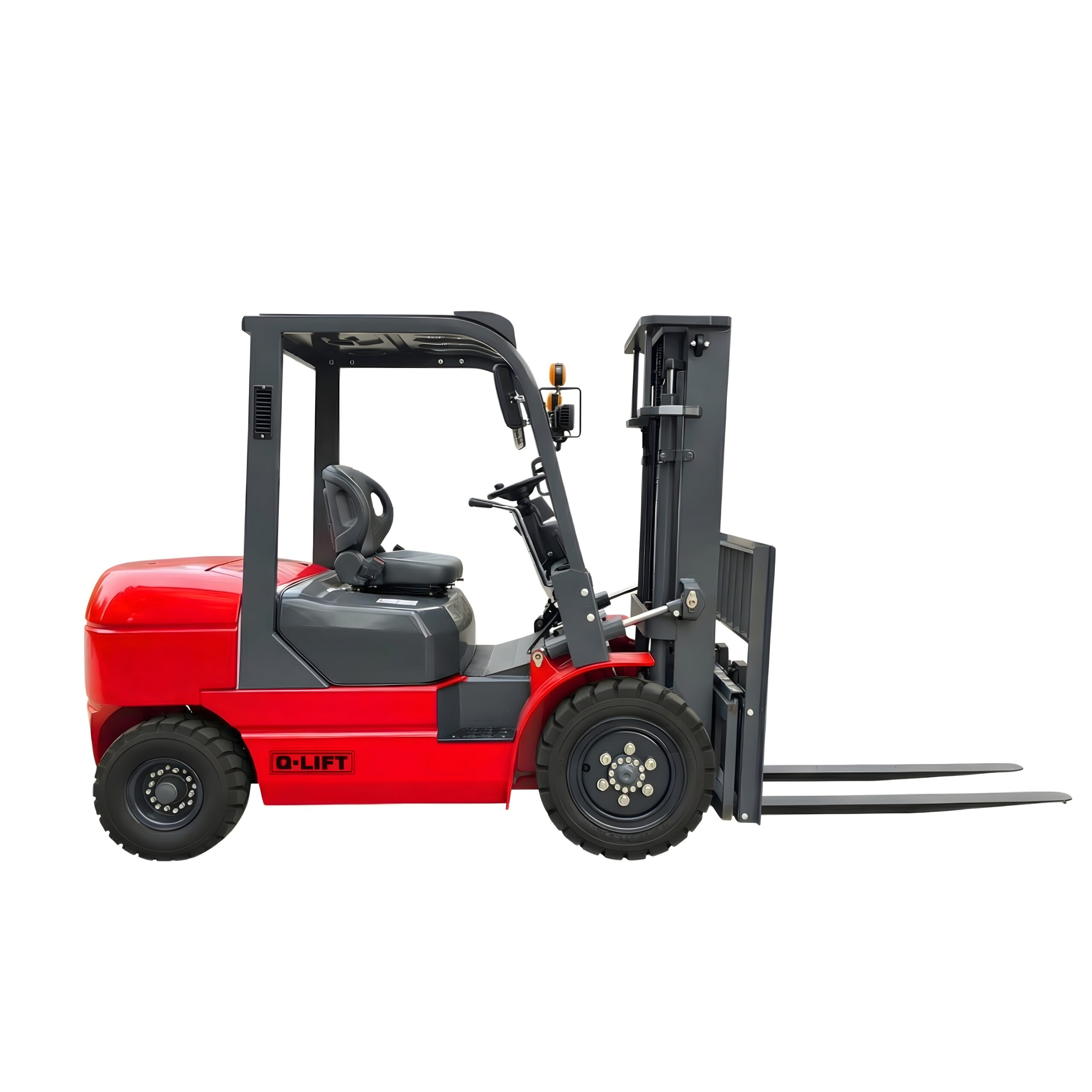

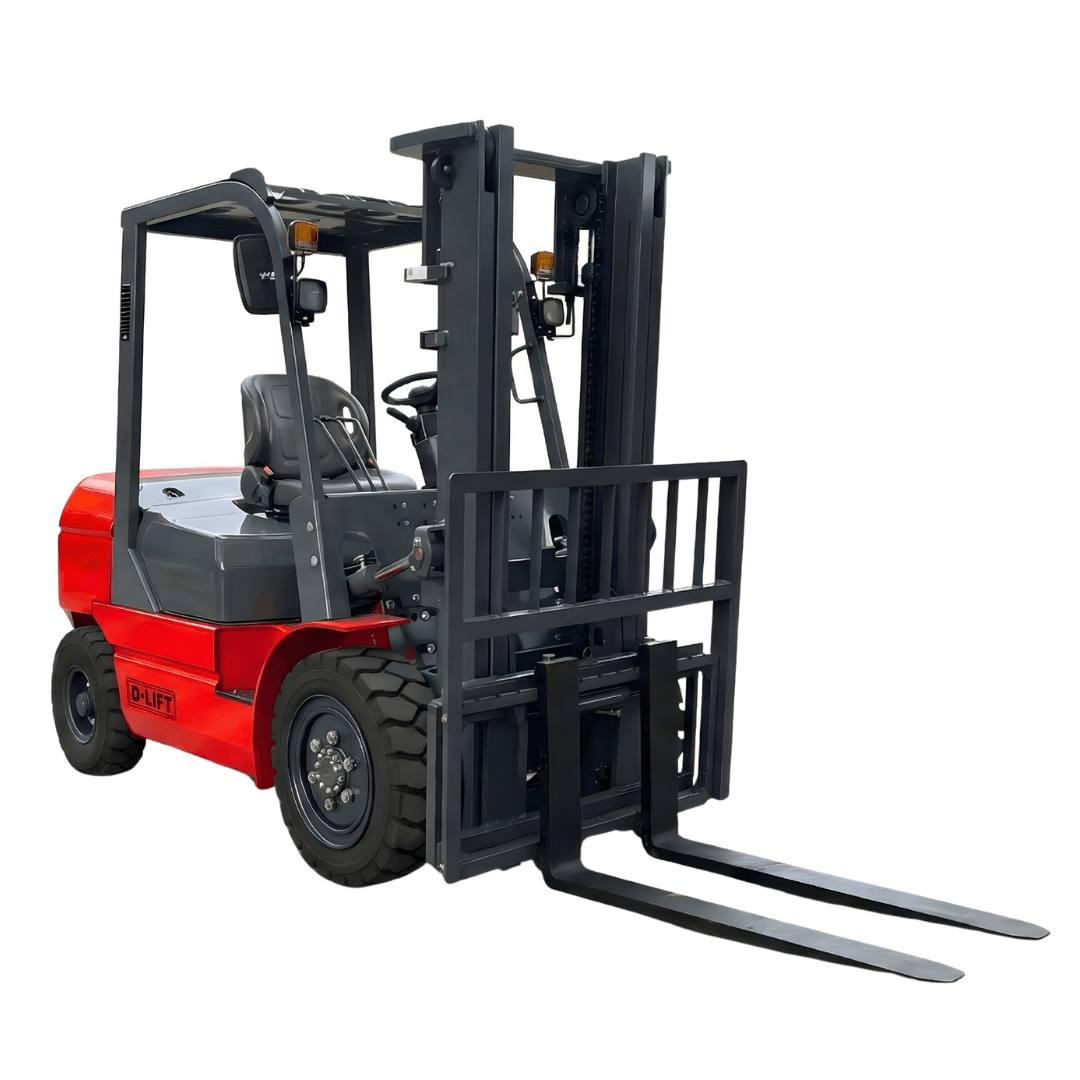

QFLD2.0 | 2.0 TON | 4 - WHEEL | DIESEL FORKLIFT - Image 2
QFLD2.0 | 2.0 TON | 4 - WHEEL | DIESEL FORKLIFT - Image 3

QFLD2.0 | 2.0 TON | 4 – WHEEL | DIESEL FORKLIFT

The Q-LIFT QFLD2.0 Diesel Forklift is a robust, high-performance material handling solution designed for demanding industrial and outdoor applications. With a 2,000 kg rated lifting capacity and a full free 3-stage mast, this forklift delivers exceptional versatility, strength, and operational efficiency across warehouses, logistics hubs, construction sites, container yards, and manufacturing environments.

Powered by a reliable 4-cylinder diesel engine, the QFLD2.0 produces 35.4 kW at 2,500 RPM, offering strong torque, smooth power delivery, and dependable performance even in rugged conditions. The hydraulic transmission ensures precise control, while excellent gradeability of 20% allows confident operation on inclines and uneven surfaces.

Equipped with a full free 3-stage mast, the QFLD2.0 provides lift heights of up to 4,500 mm, making it ideal for operations where overhead clearance is limited while still requiring high stacking capability. The compact design, combined with a tight 2310 mm turning radius, enables efficient maneuverability in confined spaces.

Operator comfort and safety are enhanced through an ergonomic layout, clear visibility, and a durable overhead guard. Heavy-duty pneumatic tyres and a solid chassis contribute to outstanding stability, even when handling loads near maximum capacity.

The Q-LIFT QFLD2.0 is a dependable, fuel-efficient diesel forklift built to perform day after day—delivering power, durability, and precision where it matters most.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD2.0 | 2.0 TON – Spec Sheet

Q-LIFT Diesel forklifts are robust and versatile industrial vehicles designed for heavy-duty material handling tasks. Powered by efficient diesel engines, these forklifts are ideal for outdoor operations and environments where durability and strength are paramount. Their superior lifting capacity and ability to operate in rugged conditions make them the preferred choice for industries such as construction, logistics, and manufacturing.

Available on back-order

Request a quote
SKU QFLD2.0 Category Tag
Share this
📦 Model Details
Model QFLD2.0 Power Type Diesel
Rated Capacity 2000 kg Load Centre 500 mm
Lift Height 3000-4500 mm Fork Size (L×W×T) 1070 × 120 × 40 mm
Mast Tilt Angle (F/R) 6° / 12°

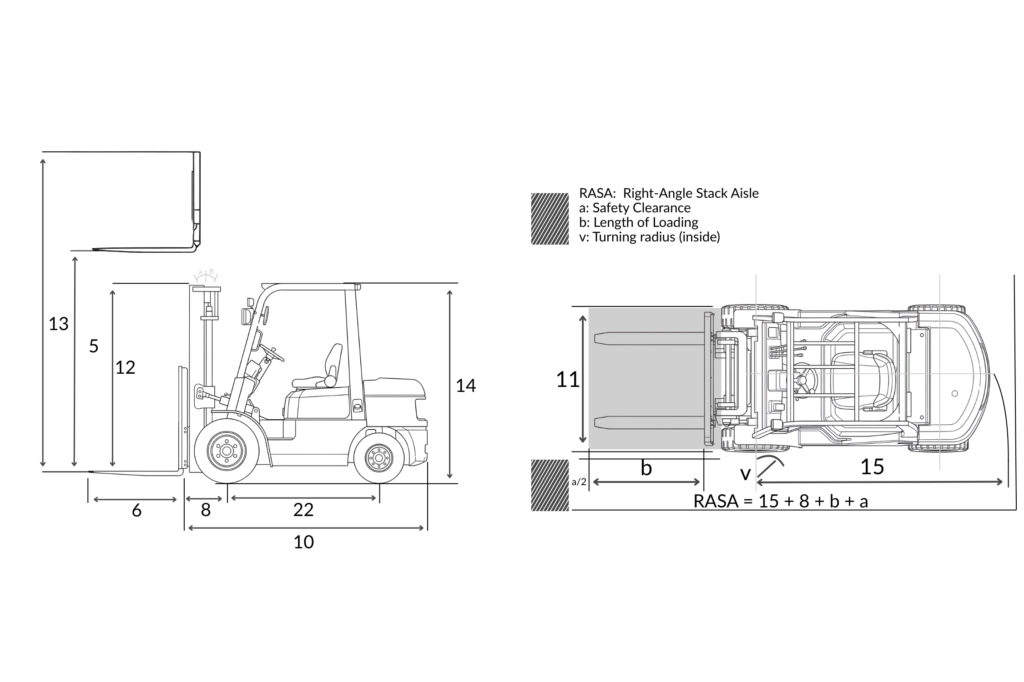

📐 Dimensions
Front Overhang 465 mm Ground Clearance 110 mm
Length (No Fork) 2595 mm Overall Width 1150 mm
Mast Lowered Height 2070 mm Mast Extended Height (With Backrest) 4070 mm
Overhead Guard Height 2070 mm Turning Radius 2310 mm
Intersecting Aisle Width 2380 mm



⚡ Performance
Travel Speed (Empty) 19 km/h Lifting Speed (Full Load) 530 mm/s
Max Gradeability 20%



🛞 Tyres & ⚙️ Weight/Power
Front Tyres 7.00 -12 (12 PR) Rear Tyres 6.00 – 9 (10 PR)
Wheelbase 1600 mm Service Weight 3590 kg



🔋 Battery & Engine
Battery 12 V / 80 Ah Engine Model QFLD2.0
Manufacturer XINCHAI Rated Output / RPM 35.4 kW / 2500
Rated Torque / RPM 137.7 N·m / 1800 No. of Cylinders 4
Bore x Stroke 86 × 102 mm Displacement 2369 cc
Fuel Tank Capacity 60 L Transmission Type Hydraulic
Stage I FWD/RVS 1 / 1 Operating Pressure 18 Mpa



🏗️ Full Free 3 Stage Lift Mast
Lift Height 4500 mm Load Capacity 1750 / 1800kg



📏 Mast Heights (3.0T)
Mast Lowered 2055 mm Extended (With Backrest) 5570 mm
Extended (No Backrest) 5155 mm Free Lift (With BR) 1010 mm
Free Lift (No BR) 1425 mm Tilt Angle (F/R) 6° / 6°

Description

The Q-LIFT QFLD2.0 Diesel Forklift is a robust, high-performance material handling solution designed for demanding industrial and outdoor applications. With a 2,000 kg rated lifting capacity and a full free 3-stage mast, this forklift delivers exceptional versatility, strength, and operational efficiency across warehouses, logistics hubs, construction sites, container yards, and manufacturing environments.

Powered by a reliable 4-cylinder diesel engine, the QFLD2.0 produces 35.4 kW at 2,500 RPM, offering strong torque, smooth power delivery, and dependable performance even in rugged conditions. The hydraulic transmission ensures precise control, while excellent gradeability of 20% allows confident operation on inclines and uneven surfaces.

Equipped with a full free 3-stage mast, the QFLD2.0 provides lift heights of up to 4,500 mm, making it ideal for operations where overhead clearance is limited while still requiring high stacking capability. The compact design, combined with a tight 2310 mm turning radius, enables efficient maneuverability in confined spaces.

Operator comfort and safety are enhanced through an ergonomic layout, clear visibility, and a durable overhead guard. Heavy-duty pneumatic tyres and a solid chassis contribute to outstanding stability, even when handling loads near maximum capacity.

The Q-LIFT QFLD2.0 is a dependable, fuel-efficient diesel forklift built to perform day after day—delivering power, durability, and precision where it matters most.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD2.0 | 2.0 TON – Spec Sheet
