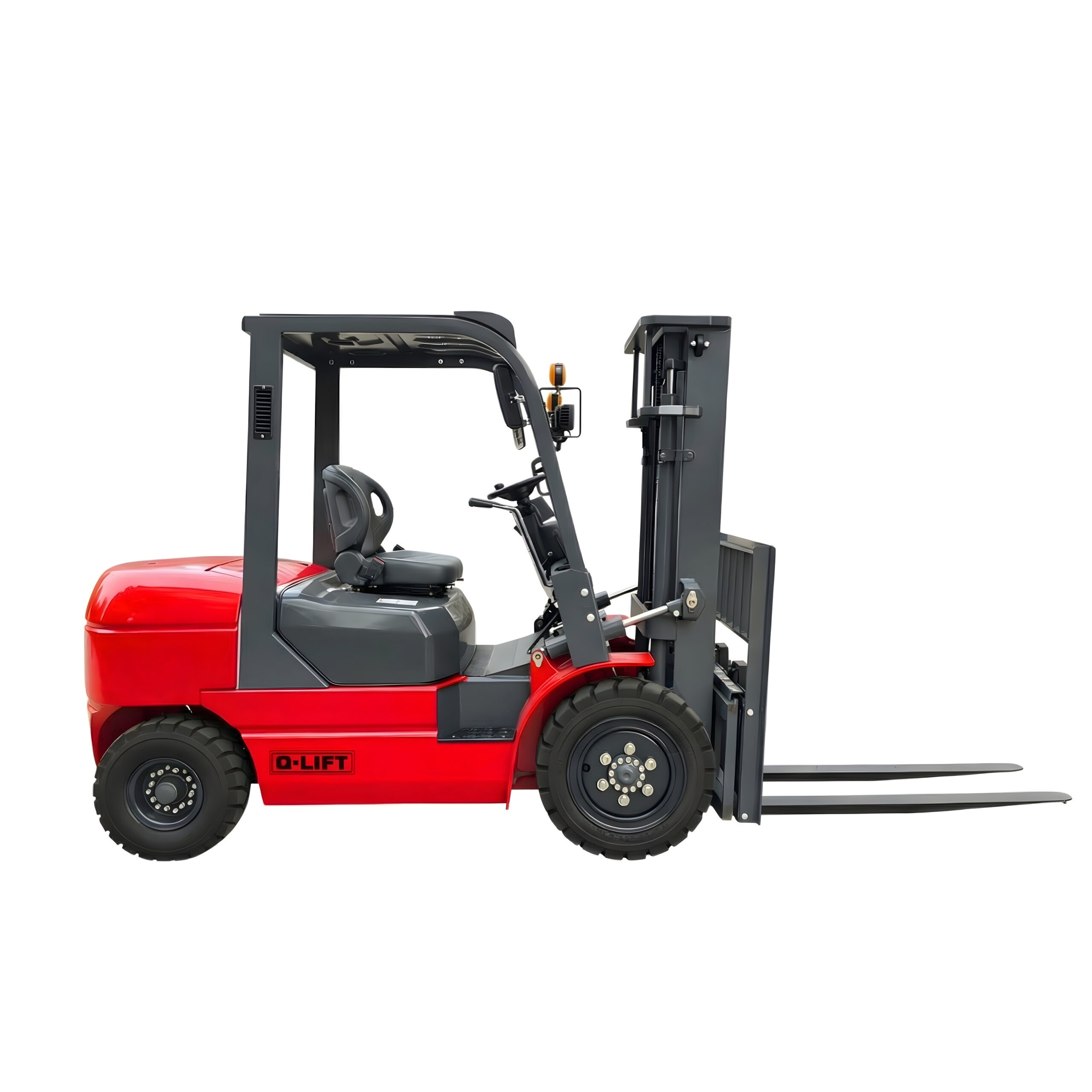

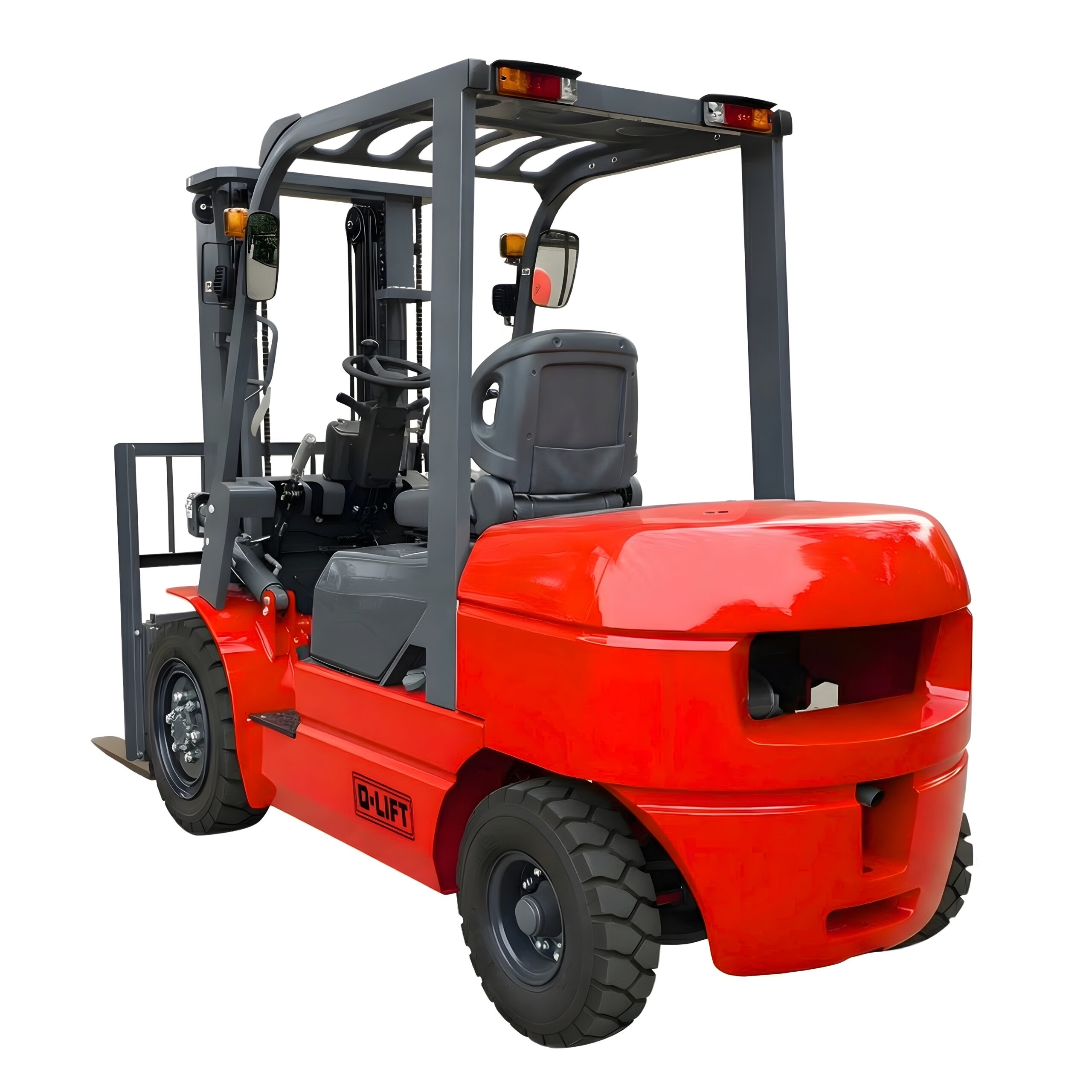

QFLD2.5| 2.5 TON | 4 – WHEEL | DIESEL FORKLIFT

QFLD2.5| 2.5 TON | 4 - WHEEL | DIESEL FORKLIFT
QFLD2.5| 2.5 TON | 4 - WHEEL | DIESEL FORKLIFT - Image 2
QFLD2.5| 2.5 TON | 4 - WHEEL | DIESEL FORKLIFT - Image 3

QFLD2.5| 2.5 TON | 4 – WHEEL | DIESEL FORKLIFT

The Q-LIFT QFLD2.5 Diesel Forklift is a powerful and dependable material-handling solution designed for demanding industrial applications. With a rated capacity of 2,500 kg and a 500 mm load centre, this forklift delivers the strength, stability, and performance required for warehouses, logistics hubs, manufacturing plants, container yards, and construction sites.

Powered by a reliable 4-cylinder diesel engine, the QFLD2.5 produces 35.4 kW at 2,500 rpm, offering strong torque, fuel efficiency, and dependable performance in tough outdoor environments. Its hydraulic transmission ensures smooth operation, while the robust chassis and wide wheelbase enhance stability when lifting and transporting heavy loads.

Equipped with a Full Free 3-Stage Mast, the forklift provides excellent visibility and flexibility, allowing for lift heights up to 4,500 mm with substantial free lift—ideal for operations in confined spaces, containers, and low-clearance warehouses. The mast’s tilt angles of 6° forward and 12° rearward ensure precise load handling and improved safety during stacking.

Designed with operator comfort and productivity in mind, the QFLD2.5 offers ergonomic controls, a protective overhead guard, and responsive lifting and travel speeds. Its solid pneumatic tyres and 20% gradeability make it well suited for uneven surfaces and challenging work conditions.

Whether you’re handling pallets in a warehouse or moving heavy materials outdoors, the Q-LIFT QFLD2.5 Diesel Forklift is a rugged, efficient, and versatile solution built to perform day after day.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD2.5 | 2.5 TON – Spec Sheet

Q-LIFT Diesel forklifts are robust and versatile industrial vehicles designed for heavy-duty material handling tasks. Powered by efficient diesel engines, these forklifts are ideal for outdoor operations and environments where durability and strength are paramount. Their superior lifting capacity and ability to operate in rugged conditions make them the preferred choice for industries such as construction, logistics, and manufacturing.

Available on back-order

Request a quote
SKU QFLD2.5 Category Tag
Share this
📦 Model Details
Model QFLD2.5 Power Type Diesel

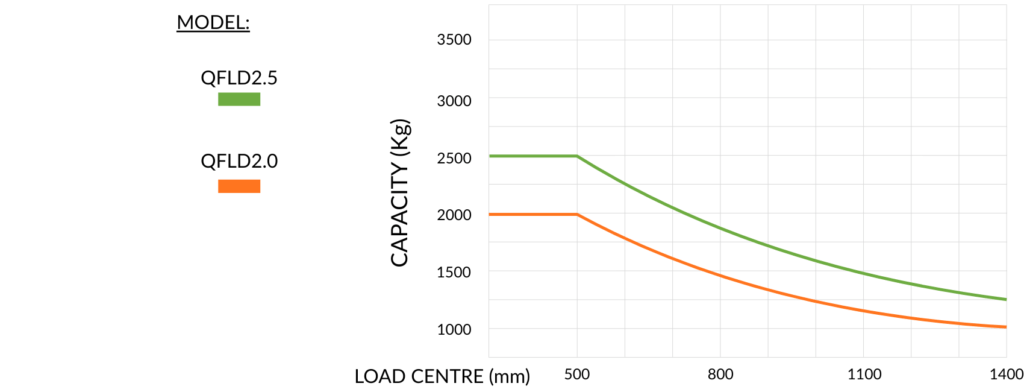

Rated Capacity 2500 kg Load Centre 500 mm
Lift Height 3000 – 4500mm Fork Size (L×W×T) 1070 x 120 x 40 mm
Mast Tilt Angle (F/R) 6° / 12°

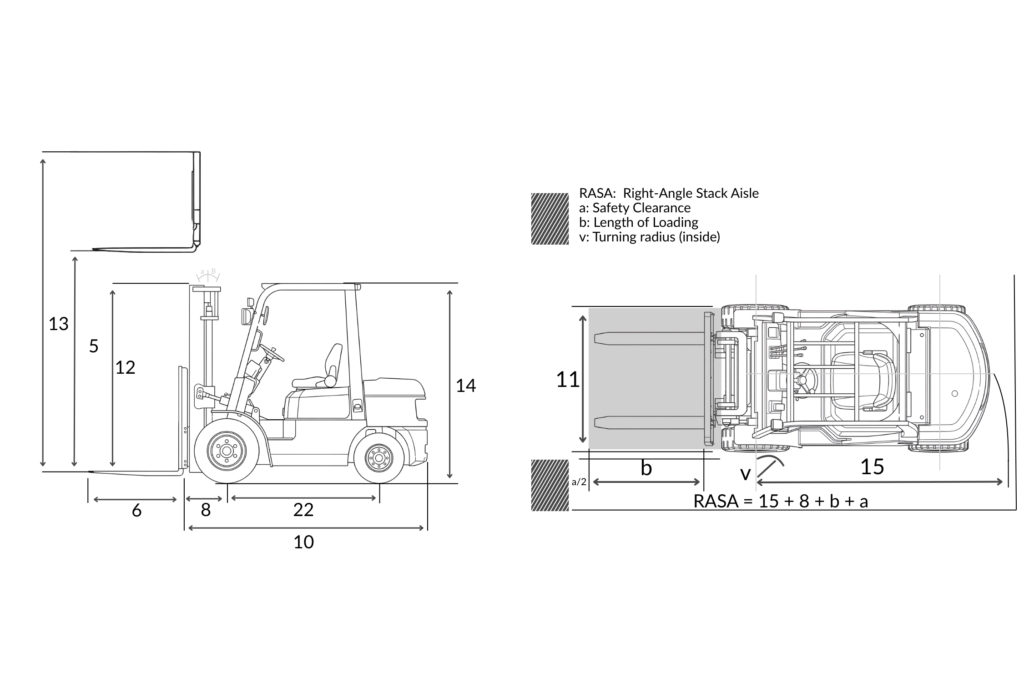

📐 Dimensions
Front Overhang 465 mm Ground Clearance 110 mm
Length (No Fork) 2595 mm Overall Width 1150 mm
Mast Lowered Height 2070 mm Mast Extended Height (With Backrest) 4070 mm
Overhead Guard Height 2070 mm Turning Radius (Outside) 2310 mm
Intersecting Aisle Width 2380 mm



⚡ Performance
Travel Speed (Empty) 19 km/h Lifting Speed (Full Load) 530 mm/s
Max Gradeability 20%



🛞 Tyres & ⚙️ Weight/Power
Front Tyres 7.00 – 12 (12 PR) Rear Tyres 6.00-9 (10 PR)
Wheelbase 1600 mm Service Weight 3790 kg



🔋 Battery & Engine
Battery 12 V / 80 Ah Engine Model QFLD2.5
Manufacturer XINCHAI Rated Output / RPM 35.4 kW / 2500
Rated Torque / RPM 137.7 N·m / 1800 No. of Cylinders 4
Bore x Stroke 86 × 102 mm Displacement 2369 cc
Fuel Tank Capacity 60 L Transmission Type Hydraulic
Stage I FWD/RVS 1 / 1 Operating Pressure 18 Mpa



🏗️ Full Free 3 Stage Lift Mast
Lift Height 4500 mm Load Capacity 2150 / 2300 kg



📏 Mast Heights (3.0T)
Mast Lowered 2055 mm Extended (With Backrest) 5570 mm
Extended (No Backrest) 5155 mm Free Lift (With BR) 1010 mm
Free Lift (No BR) 1425 mm Tilt Angle (F/R) 6° / 6°

Description

The Q-LIFT QFLD2.5 Diesel Forklift is a powerful and dependable material-handling solution designed for demanding industrial applications. With a rated capacity of 2,500 kg and a 500 mm load centre, this forklift delivers the strength, stability, and performance required for warehouses, logistics hubs, manufacturing plants, container yards, and construction sites.

Powered by a reliable 4-cylinder diesel engine, the QFLD2.5 produces 35.4 kW at 2,500 rpm, offering strong torque, fuel efficiency, and dependable performance in tough outdoor environments. Its hydraulic transmission ensures smooth operation, while the robust chassis and wide wheelbase enhance stability when lifting and transporting heavy loads.

Equipped with a Full Free 3-Stage Mast, the forklift provides excellent visibility and flexibility, allowing for lift heights up to 4,500 mm with substantial free lift—ideal for operations in confined spaces, containers, and low-clearance warehouses. The mast’s tilt angles of 6° forward and 12° rearward ensure precise load handling and improved safety during stacking.

Designed with operator comfort and productivity in mind, the QFLD2.5 offers ergonomic controls, a protective overhead guard, and responsive lifting and travel speeds. Its solid pneumatic tyres and 20% gradeability make it well suited for uneven surfaces and challenging work conditions.

Whether you’re handling pallets in a warehouse or moving heavy materials outdoors, the Q-LIFT QFLD2.5 Diesel Forklift is a rugged, efficient, and versatile solution built to perform day after day.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLD2.5 | 2.5 TON – Spec Sheet
