QFLE2.5 | 2.5 TON | 4 – WHEEL | ELECTRICAL FORKLIFT

📦 Model Details
Model	QFLE2.5	Power Type	Electric
Rated Capacity	3000 kg	Load Centre	500 mm
Lift Height	3000 – 4500 mm	Fork Size (L×W×T)	1070 × 125 × 45 mm
Tilt Angle (F/R)	6° / 12°

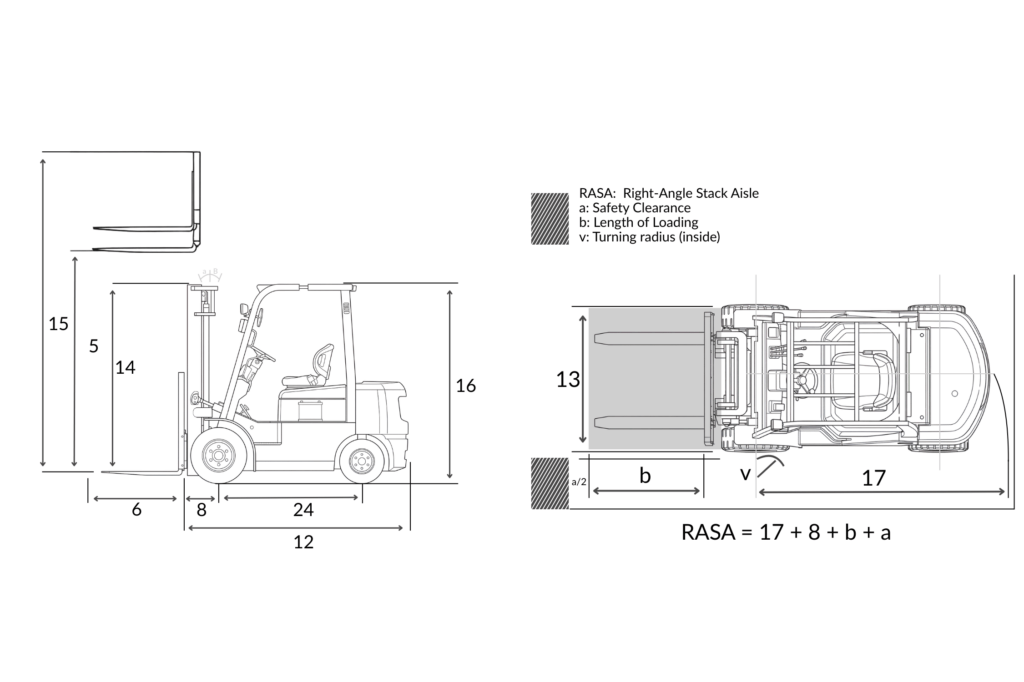

📐 Dimensions & Characteristics
Front Overhang	480 mm	Tread (F/R)	1000 / 980 mm
Ground Clearance	140 mm	Fork Spread (Min/Max)	250 / 1100 mm
Length (No Fork)	2610 mm	Overall Width	1230 mm
Mast Lowered Height	2115 mm	Mast Extended Height (With Backrest)	4180 mm
Overhead Guard Height	2250 mm	Turning Radius (Outside)	2350 mm
Minimum Intersecting Aisle Width	2425 mm

⚡ Performance
Travel Speed (Empty)	14 km/h	Lifting Speed (Load)	300 mm/s
Max Gradeability	15%

🛞 Tyres & ⚙️ Weight/Power
Front Tyres	28×9-15 (12 PR)	Rear Tyres	18×7-8 (14 PR)
Wheelbase	1700 mm	Service Weight	5100 kg
Drive Motor	15 kW	Lift Motor	12 kW

🔋 Battery & Hydraulics
Battery	80V / 500Ah	Controller	AC
Hydraulic Pressure	18 Mpa

🏗️ 3-Stage Full Free Lift
Model	QFLE2.5	Lift Height	4500 mm
Load Capacity	2700 / 2800 kg

📏 Mast Heights (2.5T)
Mast Lowered	2135 mm	Extended (With Backrest)	5675 mm
Extended (No Backrest)	5275 mm	Free Lift (With BR)	990 mm
Free Lift (No BR)	1390 mm	Tilt Angle (F/R)	6° / 6°

Description

POWERFUL. EFFICIENT. ECO-FRIENDLY.
Experience next-level efficiency and performance with the QFLE2.5 Electric Forklift, engineered for modern warehouses, factories, and logistics centers. Combining precision, power, and sustainability, this forklift is built to handle your material-handling needs with ease.

KEY FEATURES:

High-Capacity Lithium-Ion Battery:
Fast-charging 80V/500Ah battery delivers longer runtime, low maintenance, and zero emissions for an eco-friendly operation.

Powerful Electric Drive:
15 kW drive motor and 12 kW lift motor provide smooth, quiet operation, impressive lifting speed (300 mm/s), and reliable travel at up to 14 km/h.

Versatile 3-Stage Full Free Lift Mast:
Lift up to 4500 mm with a full free lift capability (up to 1390 mm), allowing easy operation in low-ceiling areas while handling loads of up to 3000 kg.

Compact & Agile:
Tight turning radius of 2350 mm and minimum aisle width requirement of 2425 mm make manoeuvring in confined spaces effortless.

Ergonomic & Safe:
Operator-friendly controls, comfortable seating, and advanced safety systems—including overload protection, anti-rollback, and LED work lights—ensure maximum efficiency and safety on the job.

Durable & Reliable:
Robust tyres, high ground clearance (140 mm), and strong hydraulic pressure (18 MPa) make it ideal for intensive warehouse and industrial use.

Forklift Equipped with Full Free 3-Stage Mast

The Spec Sheet can be downloaded here: QFLE2.5 I 2.5 TON – Spec Sheet
